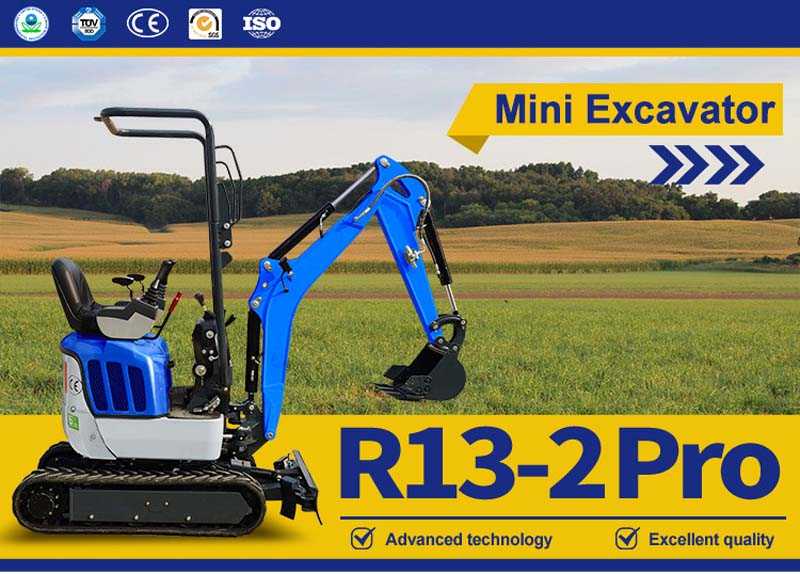

Chinese Mini Excavator

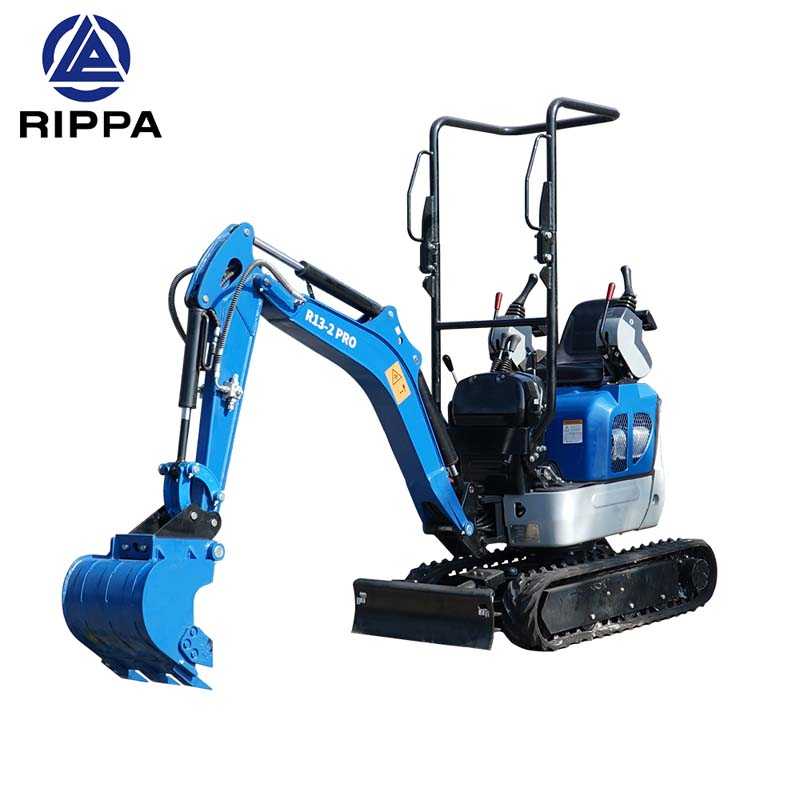

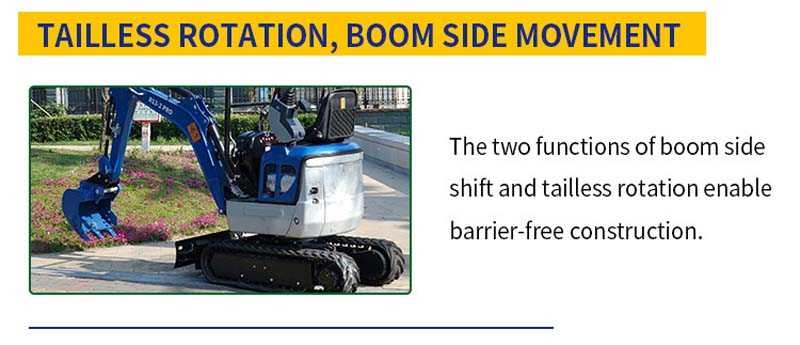

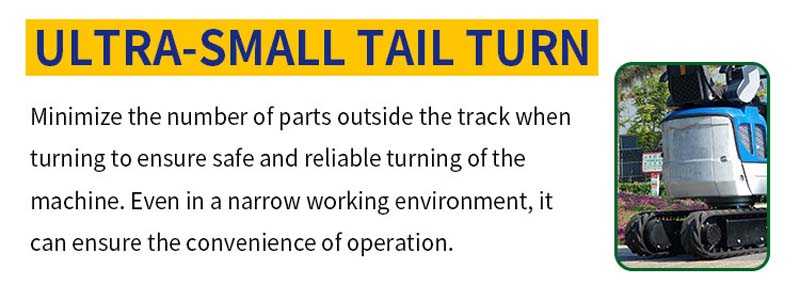

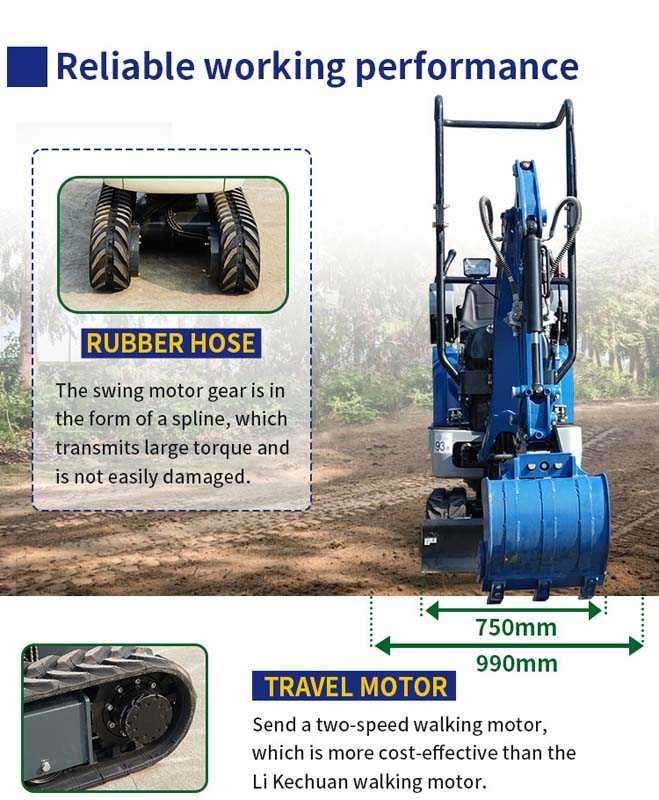

The R13 PRO adopts an ultra-compact design and is equipped with a variable width crawler (750mm-990mm), which can easily pass through narrow passages and doorways. At the same time, it has high stability after unfolding and is suitable for a variety of mission scenarios. The rear small swing design, with a swing radius of only 506mm and a rear overhang of only 15mm, facilitates flexible operation in compact spaces. The compact design is easy to transport and store, with a transport length of 2114mm, a width of 750mm, and a height of 2289mm.

High-performance excavation performance:

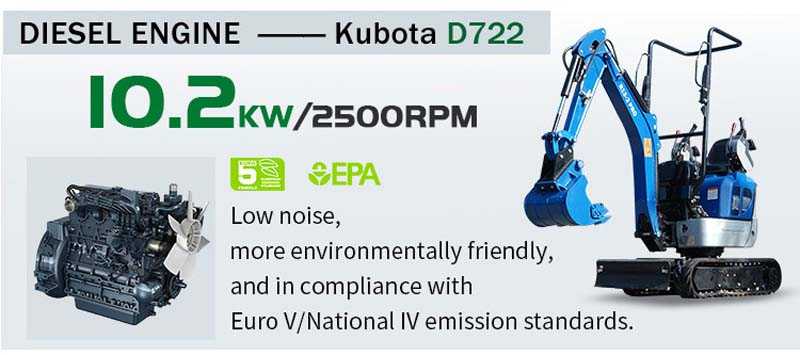

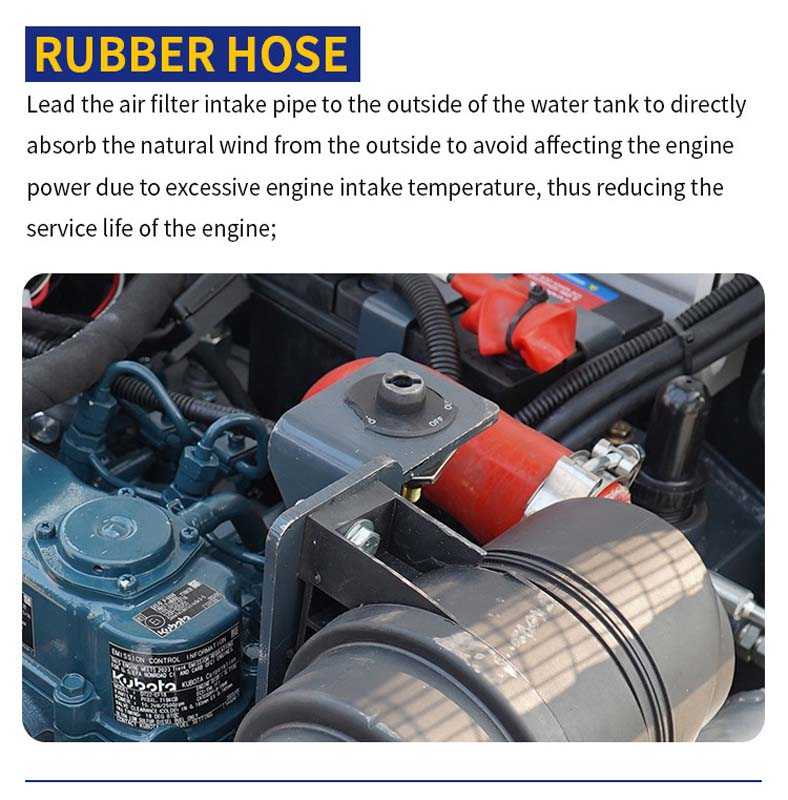

Equipped with a high-torque, low-vibration Kubota 3-cylinder engine, it meets Euro 5 and EPA 4 emission standards, provides strong excavation power and low noise.

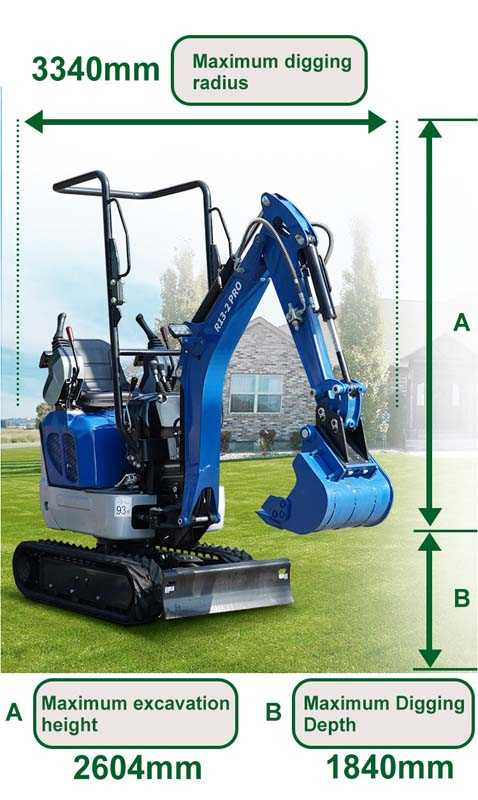

Maximum excavation force 9.8kN, maximum excavation radius 3346mm, maximum excavation depth 1843mm, meeting different excavation needs。

Flexible operation:

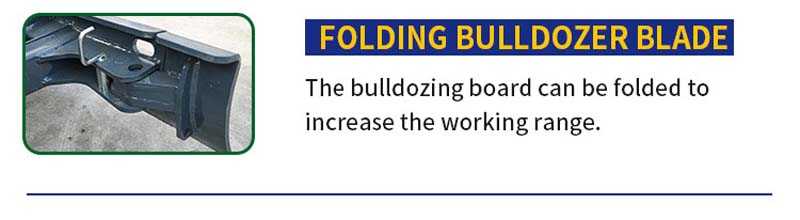

The two working modes can be easily switched through the operating lever, and the width of the bulldozer can be adjusted without tools to improve working efficiency.
The equipped hydraulic pilot rod can achieve smooth operation and one-button mode switching, which improves the convenience of operation.

Safety protection design:
Optional ROPS (Rollover Protection Structure) ensures operator safety when the machine rolls over.

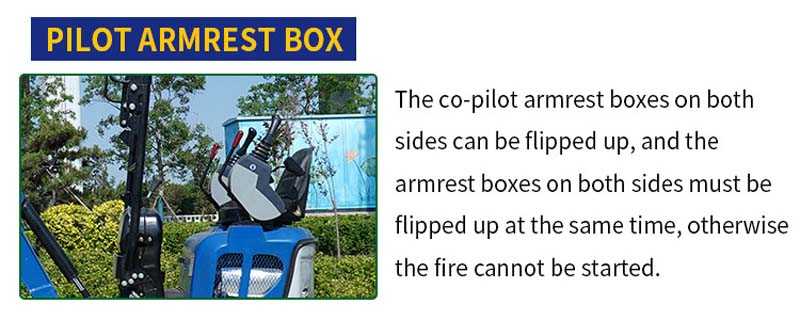

Equipped with engine neutral start function to prevent the engine from starting when the operating lock lever is not in the raised position.
Fully open hood facilitates daily inspection and component replacement, extending engine life.

Durable and easy to maintain:
LED lights generate little heat, are impact-resistant, and are suitable for harsh environments.
Split dozer hose design allows for easy replacement in case of accidental damage.
Equipped with a trailer hook, tool box, and detailed instruction manual for easy daily maintenance.

Humanized design:
The front operating lever design provides ample foot space for the operator.

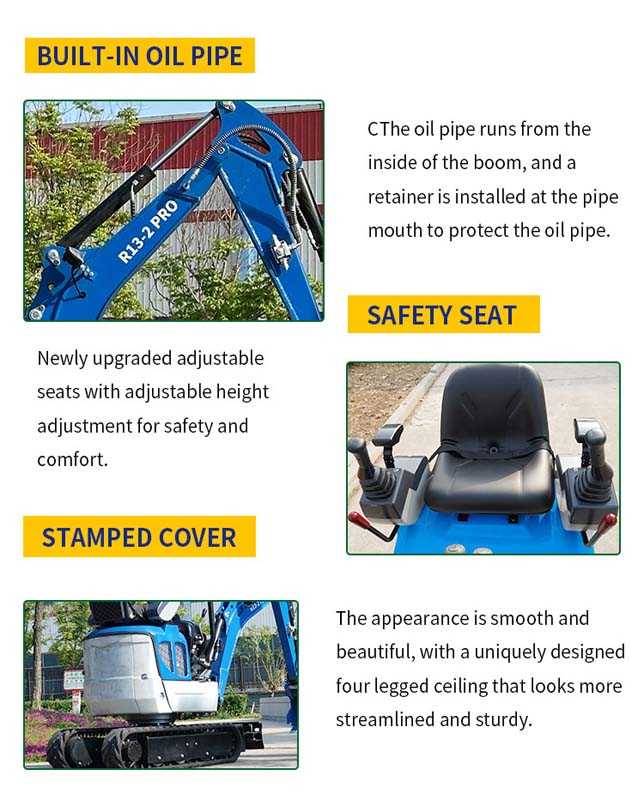

The adjustable sliding seat and retractable seat belt adapt to operators of different body sizes, ensuring comfort and safety during operation. In summary, the R13 PRO small excavator is undoubtedly a strong competitor in the export trade market with its excellent narrow space operation ability, high-performance excavation performance, flexible operation mode, safety protection design, durable and easy maintenance, humanized design, and efficient transportation and storage.
